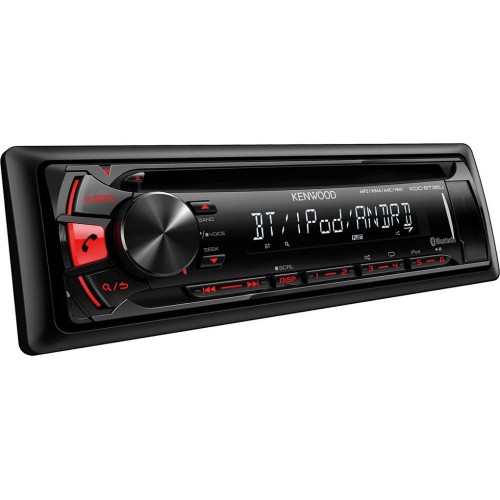

Bluetooth, USB autorádio s červeným podsvietením; 1x RCA; podpora mp3, wav, aac,...
General Features
DIN Size: 1 DIN
Detachable Faceplate: Yes
Faceplate Mechanism: Full Detachable Faceplate
Multi control wheel: Yes
Accent key: Yes, Receive/end a call
Attenuator with Smooth Volume Return: Yes
Touch Sensor Tone: Yes
Digital Clock (24H): Yes
All-off Select (20/40/60 minutes): Yes
Built-in Connector: Molex 16 pin
ISO connector: Yes
Bluetooth unit built-in: Yes
USB interface x 1: Yes, (Front)
Firmware upgreadable: Yes
Display Features
Display Type: Liquid Crystal Display (LCD)
Display Layout: 13 characters/digits
Display Illumination: light-emitting diode (LED)
Dimmer Control: Display (Manual: On/Off)
Brightness control: of display in 32 steps
Demo Mode: Yes
Special Character Display: English / Russian / Greek
Menu text in selectable language: English/Russian
TAG Display: English/Russian/Greek
Cosmetics features
Front/edge: Piano black
Dress plate: Piano Black
Volume & operation knob or wheel: Piano black
Preset key finish: Piano Black
Escutcheon finish: Black Injection
Triangle Illumination: Red
Volume & operation knob illumination: Red
Key illumination: Red
Illumination of USB & AUX terminals: White
Display illumination: White LED
Front terminals dust cover: Yes
Tuner Features
Radio Data System: Yes
Radio Text Plus: Yes
Traffic Information: Yes
FM Reception: Yes
AM (MW/LW) Reception: Yes
Presets: 24 Presets (18FM / 3LW / 3MW)
Mixed preset memory (FM & AM): 6 presets
Station Select: List
Tuner preset/recall key: Yes
Automatic Memory Entry (AME): Yes
Up/Down Seek Tuning: Yes
Tuning mode (Auto1 / Auto2 / Manual): Yes
FM Stereo / Mono Selector: Yes
Preset memory w/o back-up power: Yes
Program Type Function (PTY): Yes
Enhanced Other Networks Function (EON): Yes
CE_Playable Audio file
AAC (*.m4a) files are playable from: CD/USB
MP3 files are playable from: CD/USB
WMA (.wma) files are playable from: CD/USB
WAV (.wav) files are playable from: USB
CD Features
Compatible with Kenwood Music Editor Lite: Yes
CD Text with special Character Support: + Russian & Greek
0 bit Mute: Yes
Random Function (Track): Yes
Repeat Function (Track/Disc): Yes
Scan Function (Track/Disc): Yes
USB Features
USB terminal: Yes, Front
USB Type: USB 1.1/USB 2.0 Full Speed
Drive Change: Yes, up to 5 drives
Kenwood Music Editor Lite Compatible: Yes
Kenwood Music Control App for Android: Yes
Android Open Accessory support (AOA): V 2.0
Repeat / Random Play: Yes
Resume play: Yes
Time code display: Yes
iPod Features
Made for iPod & iPhone *: Yes
USB Direct Control: with optiona cable KCA-iP102
USB Direct Control (Audio, 1 wire, Lightning-connector): with optional cable KCA-iP103
Alphabet search: Yes
Skip search: Yes
Direct Search: Yes
My playlist: Yes
iPod EQ Mode: Yes
Control by hand: Yes
App & iPod control mode: Yes
Reverse browsing: Yes
Voice Control using Siri.: Yes
Works with iPod Classic *: 80G, 120G & 160G
Works with iPod Video *: 5th/6th generation
Works with iPod Touch *: 2nd/3rd/4th & 5th** generation
Works with iPod Nano *: 3rd/4th/5th/6th/7th generation
Works with iPhone *: 3G/3GS/4/4S/5/5S/5C
Bluetooth Auto Paring for iPhone: Yes
Battery charge + power control: Yes
1A current capability: Yes
* Always update to latest Apple firmware
Audio Features
Maximum Output Power: 50W x 4
MOSFET Power IC: Yes
Auxiliary input: Front Mini-jack
Pre-out: 1 RCA
Pre-out Output Level: 2.5V
Preout Rear / Subwoofer Switchable: Yes
Subwoofer Reference Level Adj.: Yes
Source Tone Control & Memory: Bass / Mid / Treble
Balance/Fader/Loudness Control: Yes
Att.(-20dB) with smooth Volume Return: Yes
Sound Reconstruction: Yes
System Q_SP/M (Preset & Manual Sound Control): Yes
Drive EQualizer: Yes
Bass Boost Circuit: Yes, 3 steps
Low-pass Filter: Yes
Bluetooth General Features
Hands Free Profile with High Sound Quality: HFP V1.6
Advanced Audio Distribution Profile (A2DP): Yes
Serial Port Profile (SPP): Yes
Phonebook Access Profile (PBAP): Yes
Object Push Profile (OPP): Yes
iPhone & Android automatic pairing via USB: Yes
Works with iPhone Siri: Yes
Max number of registed phones: 5 phones
Phone numbers hold:: up to 400 per registed cell-phone.
Phone device status display: Yes
Audio device status display: Yes
Signal strength display: Yes
Remaining battery display: Yes
Compatibility check mode: Yes
High-quality noise canceling microphone: Yes, external
Bluetooth firmware upgradeable: Yes
* depends on phone model/make
Connectivity
OEM Wired Remote Control: Yes
DC-Cord: Molex to ISO
Power Control (P.CON) wire: Yes
2-way (Tel/Navi) mute wire: Yes
Tuner Specifications
FM range: 87.5Mhz - 108MHz (50Khz step): Yes
FM Usable Sensitivity: 1μV/75ohm (S/N 26dB)
FM Quieting Sensitivity: 1.13μV/75ohm (S/N 46dB)
FM Frequency Response: 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono): 75dB
MW range: 531kHz - 1611kHz (9kHz step): Yes
MW Usable Sensitivity: 25μV
LW range: 153kHz - 279kHz (9kHz step): Yes
LW Usable Sensitivity: 33μV
CE_CODEC_Specs
MP3 Format: Compliant with MPEG-1/2 Audio Layer-3
WMA Format: Compliant with Windows Media Audio
AAC Format: AAC-LC “.m4a” files
WAV Format: RIFF waveform Audio Format (only for LinearPCM)
CD Specifications
Laser Diode: GaAIAs
Digital Filter(D/A): 8 Times Over Sampling
Digital/Analogue Converter: 16 Bit
Spindle Speed: 500 ~ 200rpm (CLV: 8 times)
Wow & Flutter: Below Measurable Limit
Frequency Response: 20Hz ~ 20kHz (±1dB)
Total Harmonic Distortion: 0.01% (1kHz)
Signal to Noise Ratio: 105dB (1kHz)
Dynamic Range: 90dB
MP3 Decoder: Compliant with MPEG-1/2 Audio Layer-3
WMA Decoder: Compliant with Windows Media Audio
USB Specifications
USB Version compatibility: USB 1.1/2.0 full speed
File System: FAT 16/32
Maximum Supply current: 1000mA
D/A Converter: 16 bit
MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
WMA Decode: Compliant with Windows Media Audio
WAV Decode: Linear - PCM Files
Audio Specifications
Maximum Power: 50W x 4
Output Power (DIN45324,+B=14.4v): 30W x 4
Preout Level: 2500mV / 10kOhm,
Preout Impedance: ≤ 600Ohm
Speaker Impedance: 4Ohm ~ 8Ohm
AUX Frequency Response: 20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage: 1200mV
AUX Input Impedance: 30kOhm
Bass Tone Control: 200Hz ±8dB
Middle Tone Control: 2.5kHz ±8dB
Treble Tone Control: 12.5kHz ±8dB
Bluetooth specifications
Technology: bluetooth 2.1 + EDR certified
Frequency: 2.402 - 2.48 GHz
Output power: +4dBm(max), 0dBm (AVE) power class 2
Maximum range: Line of sight approx. 10 meter
Handsfree profile (HFP): Yes
Serial port profile (SPP): Yes
Advanced audio distribution profile (A2DP): Yes
Audio/Video remote control profile (AVRCP): Yes
Object push profile (OPP): Yes
Phonebook access profile (PBAP): Yes
Accessories
Release keys: 2 pieces
Escutcheon: Yes
Installation Sleeve: Yes
DC cord (Molex to ISO): 25 cm
Handsfree Microphone: with 3 m cable
General Specifications
Operating voltage: 14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption: 10A
Dimensions (WxHxD): 182 x 53 x 159mm
Weight: 1200gr
Operation Temperature Range: -0°C ~ 40°C
