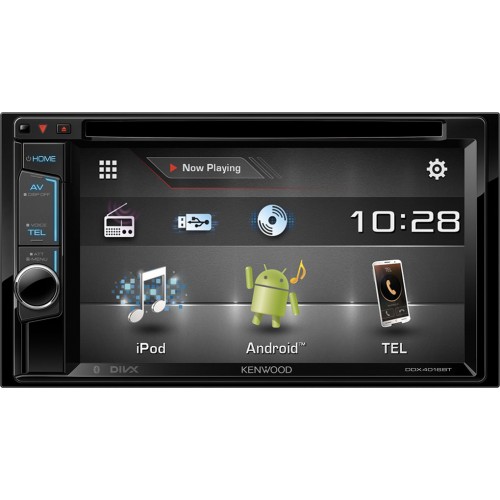

Kenwood DDX4016BT

Kenwood DDX4016BT
Výrobca: Kenwood
Kód produktu: Kenwood DDX4016BT
Dostupnosť: Skladom
Cena: 359,00€

6.2" multimediální jednotka; CD/DVD/USB/MP3/WMA/AAC/WAV, iPhone/Android; 3xRCA 4V

General Features
DIN Size: 2 DIN
Disabled System Indicator (DSI): Yes
Security Code Function ( user set): Yes, (4 Digit Code)
On Screen Display (OSD) Operation: Yes
Smooth GUI: Yes
Selectable GUI Background Wallpaper: Yes
Key Illumination: Variable color
Rotary Encoder & Control Knob: Yes
Touch sensor: Yes
Installer Memory: Yes
Back-up Memory: Yes
Attenuator with Smooth Volume Return: Yes
Optional IR remote controller: Yes, (KCA-RCDV331)
Digital Clock (24H): Yes
All-off Select (20/40/60 minutes): Yes
ISO connector: Yes
Bluetooth unit built-in: Yes
Optional navigation system unit: Yes
Firmware upgreadable: Yes

Monitor Features
Screen Type: 6.2" Wide VGA
LCD backlight: LED
Display Mode: 4 Mode (Full/Just/Zoom/Normal)
High Resolution VGA Display: Yes
Screen Adjustments: Brightness/Tint(NTSC only)/Colour/Contrast/Black Level/Sharpness
Dimmer function: ON/OFF/Sync/Navi-Sync
Dimmer Level: Auto/On/Off
Visual Source Mode: DVD/Video/USB/iPod/App
Touch Panel: Non Glare
NTSC/PAL judge: Yes (Auto)

Multimedia GUI Features
Variable Colour illumination: Yes
Menu text in selectable language: 21 langauges: English (UK) (Default), English (US), Spanish, French, German, Italian, Dutch, Russian, Portuguese, Chinese (Simplified), Chines, Korean, Thai, Turkish, Arabic, Persian, Hebrew, GreeK, Indonesian, Polish, Czech, Hungarian
Graphics Type: Graphics
Demonstration Mode: Yes
Background Customize: Yes, User + Preset
Top Menu Customize: Yes
Preset Wallpaper Type: Yes, 9 types
Software updates (SoC): by USB
Scroll Display: Yes
R-CAM interrupt: Yes
R-CAM Caution On Screen Display: Yes
Parking Assistance / Parking Guide Lines: Built-in, customizable

Tuner Features
Radio Data System: Yes
Radio Text Plus: Yes
ATomIC tuner: Yes
Traffic Information: Yes
FM Reception: Yes
AM (MW/LW) Reception: Yes
AF Regional: Selectable: AF/AF Reg/OFF
Local search: Yes
Auto TP search: Yes
Tuner Presets (FM/AM): 20 Presets (15FM / 5AM)
Station Select: List
Up/Down Seek Tuning: Yes
Tuning mode (Auto1 / Auto2 / Manual): Yes
FM Stereo / Mono Selector: Yes
Program Type Function (PTY): Yes
Enhanced Other Networks Function (EON): Yes

Bluetooth General Features
Hands Free Profile (HPF): V1.6
Hands Free Profile with High Sound Quality: HFP V1.6
Advanced Audio Distribution Profile (A2DP): Yes, (AAC)
Serial Port Profile (SPP): Yes
Phonebook Access Profile (PBAP): Yes, Accessible phonebook entries & alphabet search
Generic Access Profile (GAP): Yes
Message Access Profile (MAP): Yes
Audio/Video Remote Control Profile (AVRCP): Yes, V 1.5 (Audio File browsing)
Multi Profile Support: Yes
iPhone & Android automatic pairing via USB: Yes
Works with iPhone Siri: Yes
2 Phones Switchable Hands Free: Yes
Dual phones connection: Yes
Catchphone / Call Waiting: Yes
Private mode: Yes
Interrupt call request: Yes
Voice Control: Yes
Noise Canceller: Yes
Echo Canceller: Yes
Phone device status display: Yes
Signal strength display: Yes
Remaining battery display: Yes
Bluetooth phones to register: 5
High-quality noise canceling microphone: Yes
Bluetooth firmware upgradeable: Yes
* depends on phone model/make: & Kenwood unit

Disc Capacity: 1 Disc(s)
DVD±R/RW Compatible: Yes
DVD Region Code: 2
CD-R/RW Compatible: Yes
CD Text: Yes
MP3, WMA,AAC & WAV playback: Yes
MPEG1/2 Video File (.mpg) Compatible: Yes
JPEG File (.jpg) Compatible: Yes
DivX: Yes
CD-DA Repeat/Scan/Random play: Yes
Direct Search: Yes
Time Code Display: Yes
Zoom Control (DVD/VCD): Yes

USB Features
Rear USB Terminal: Yes
USB Type: 2.0 Full speed
Drive Change: Yes
Kenwood Music Editor Lite Compatible: Yes
Kenwood Music Control App for Android: Yes
Android USB Mass Storage Class (MSC): Yes
Android Open Accessory support (AOA): V 2.0
MP3, WMA, AAC & WAV playback: Yes
DivX (Home Theather 3.1): Yes
JPEG slide show: Yes
Zoom control (movie/photo): Yes
Repeat / Random Play: Yes
Direct search: Yes
Resume play: Yes
Time code display: Yes
1A current capability: Yes
1,5A charge (BC 1.2): Yes

iPod Features
Made for iPod & iPhone *: Yes
USB Direct Control (Audio, 1 wire, Lightning-connector): with optional cable KCA-iP103
USB Direct Control (Audio & Video, 2 wire, 30-pin connector): with optional KCA-iP202
USB Direct Control (Audio & Video, Lightning-connector): With optional cable KCA-HD100, KCA-iP103 & Apple Lightning to HDMI AV adapter
Album art support: Yes
Music library search: Yes
Control by hand: Yes
App & iPod control mode: Yes
iTunes Radio App: yes iAP2
2 Speed search: Yes
Reverse browsing: Yes
Voice Control using Siri.: Yes
Works with iPod Classic *: 80G, 120G & 160G
Works with iPod Video *: 5th/6th generation
Works with iPod Touch *: 2nd/3rd/4th & 5th*** generation
Works with iPod Nano *: 3rd/4th/5th/6th/7th*** generation
Works with iPhone *: 3G, 3GS,4,4S, 5, 5S, 5C, 6, 6Plus
Bluetooth Auto Paring for iPhone: Yes
Battery charge + power control: Yes
* Always update to latest Apple firmware
** Apple Lightning - 30 pin adapter required
*** In case of Apple Unit with Lightning Connector only Audio playback: Yes

Audio features
Max. Output Power (MOSFET Power IC): 4 x 50W
Pre-out: 3RCA: Front/Rear/Subwoofer
Volume Offset: Yes
Low Pass Filter (LPF): Yes
Subwoofer Reference Level Adj.: Yes
High Pass Filter (HPF): Yes
Balance/Fader Control: Yes
Loudness Control: Yes
Bass Boost: Yes
Att.(-20dB) with smooth Volume Return: Yes

Multimedia DSP Features
Position Control: Yes
Position Preset: 4
Position Cabin Size: Yes
Graphic equalizer: Yes
G-EQ: 13 bands
G-EQ manual setting: Yes
G-EQ f0 Qty: Yes, 4
G-EQ adjustable level: Yes, -9dB / -9dB
Time Alignment: 0cm ~ 610cm
High Pass Filter: Yes
HPF Cut Off Frequency: 14
HPF Cut Slope Level: 4
Low Pass Filter: Yes (Non-Fading)
LPF Cut Off Frequency: 14
LPF Cut Slope Level: 4
Cross-over: Yes
Source DSP Memory: Yes
Speaker Size Control: Yes
Car type control: Yes
Channel Level Control: Yes
Space Enhancer: Yes
SupremeV: Yes
Realizer: Yes
Loudness: Yes
Bass Boost: Yes
Drive EQ: Yes

Video Features
Audio/Video Input: Yes
iPod AV input switchable to additional AV input: Yes
Video-In for Rear-view Camera: 1 dedicated NTSC video input (RCA)
Detection Mode Rear View Camera: Reverse sensor wire
(Rear) camera display view control: Yes
Parking Guide Line: Yes
RGB Input For Navigation System: Yes
Advanced navigation terminal: Yes

iPod Digital Connection (1 Wire): Yes, KCA-iP102 (40pin) - KCA-iP103 (Lightning)
OEM Wired Remote Control: Yes
Parking sensor wire: Yes
Reverse sensor wire: Yes
Power Control (P.CON) wire: Yes
2-way (Tel/Navi) mute wire: Yes
AV-Input (Switchable iPod / AV2-in): Yes
Rear View Camera Input: Yes
Advanced navigation RGB terminal: Yes
FM Antenna Input: Yes
External microphone input (mini-jack): Yes

Tuner Specifications
FM range: 87.5Mhz - 108MHz (50Khz step): Yes
FM Usable Sensitivity: 0.71μV/75ohm (S/N 8.2dB)
FM Quieting Sensitivity: 2μV/75ohm (S/N 17.2dB)
FM Frequency Response: 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono): 64dB
FM Selectivity(DIN): over 80dB (±400kHz)
FM Stereo Separation (1kHz): 40dB
MW range: 531kHz - 1611kHz (9kHz step): Yes
MW Usable Sensitivity: 28.5μV
LW range: 153kHz - 279kHz (9kHz step): Yes
LW Usable Sensitivity: 45μV

Bluetooth specifications
Technology: Bluetooth V3.0
Frequency: 2.402 - 2.48 GHz
Output power: +4dBm(max), 0dBm (AVE) power class 2
Maximum range: Line of sight approx. 10 meter
Handsfree profile (HFP): Yes, V 1.6
Serial port profile (SPP): Yes, V 1.2
Service discovery protocol (SDP): Yes
Advanced audio distribution profile (A2DP): Yes, V 1.3
Audio Codec: SBC/AAC
Audio/Video remote control profile (AVRCP): Yes, V 1.5
Generic access profile (GAP): Yes
Phonebook access profile (PBAP): Yes, V 1.2

DVD Specifications
D/A Converter: 24 bit
Video decoder: MPEG1/MPEG2/DivX
Audio decoder: Linear PCM/Dolby Digital/MP3/WMA/AAC/WAV
Wow & Flutter: Below Measurable Limit
Freq. Resp. (96kHz Sampling): 20Hz ~ 22kHz
Freq. Resp. (48kHz Sampling): 20Hz ~ 22kHz
Freq. Resp. (44,1kHz Sampling): 20Hz ~ 20kHz
Total Harmonic Distortion: 0.01% (1kHz)
Signal to Noise Ratio: 99dB (1kHz)
Dynamic Range: 99dB
Disc Format: DVD-Video/Video-CD/CD-DA
Sample Frequency: 96k, 48k, 44,1k
Quantifying bit number: 16/20/24bit

USB Specifications
USB Version compatibility: 2.0 Full Speed
File System: FAT 16/32
Maximum Supply current: 1500mA
D/A Converter: 24 bit
Video Decoder: MPEG1/MPEG2/DivX
Audio Decoder: MP3/WMA/AAC/WAV

Audio Specifications
Maximum Power: 50W x 4
Output Power (DIN45324,+B=14.4v): 22W x 4
Preout Level: 4mV / 10kOhm,
Preout Impedance: ≤ 600Ohm
Speaker Impedance: 4Ohm ~ 8Ohm
Graphical Equalizer: 13-Band
G. EQ. Frequency (Hz): 62,5Hz - 16kHz
G. EQ. Gain (dB): -8/-7/-6/.../-1/0/1/.../6/7/8
Subwoofer Level (dB): -50 dB to +10dB

Video Specifications
Color System of External Video Input: NTSC/PAL
External video input level (mini-jack): 1 Vpp / 75 Ohm
External audio max. input level (mini-jack): 2 Vpp / 25 kOhm
Analog RGB Input: 0.7 Vpp / 75 Ohm
Video input level (RCA): 1 Vpp, 75 Ohms
Video Output Level (RCA): 1 Vpp / 75 Ohm

Monitor Specifications
Screen size (Diagonal): 6.2 Inches Wide
Screen Size (WxH): 137.5 x 77.2mm
Display system: Transparent TN LCD Panel
Drive system: TFT Active Matrix System
Number of Pixels: 1152000pixels (800(H) x 480(V) x RGB)
Effective pixels: 99.99%
Pixel arrangement: RGB Striped
Back lighting: LED (Light Emitting Diode)

General Specifications
Operating voltage: 14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption: 10A
Dimensions (WxHxD): 182 x 111 x 165mm
Weight: 1700gr
