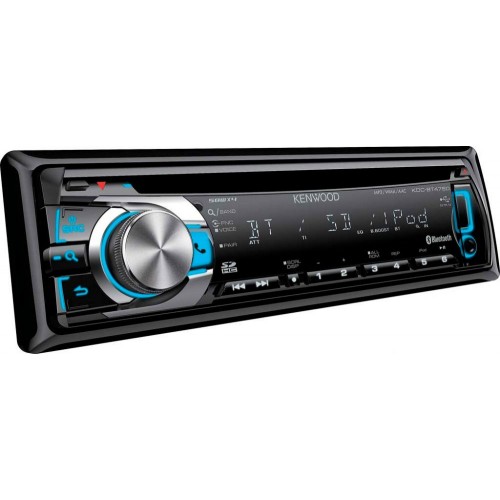

Kenwood KDC-BT47SD

Kenwood KDC-BT47SD
Výrobca: Kenwood
Kód produktu: Kenwood KDC-BT47SD
Dostupnosť: Na objednávku
Cena: 199,00€

CD/USB/SD/iPod autorádio s integrovaným Bluetooth, nastaviteľné podsvietenie, 3x2.5V RCA

General Features
DIN Size: 1 DIN
Detachable Faceplate: Yes
Protection Case For Faceplate: Yes
Faceplate Mechanism: Full Detachable Faceplate
Rotary Encoder & Control Knob: Yes
Multi control wheel: Yes
Music Search function: Yes
Accent key: Yes, (Telephone)
Attenuator with Smooth Volume Return: Yes
Touch Sensor Tone: Yes
Optional IR remote controller: Yes
Digital Clock (24H): Yes
All-off Select (20/40/60 minutes): Yes
Built-in Connector: Molex 16 pin
ISO connector: Yes
Bluetooth unit built-in: Yes
USB interface x 1: Yes

Display Features
Display Type: Flourescent (FL) Tube Display
Display Layout: 14 segments x 13 Characters
Display Illumination: Variable
Dimmer Control: 3 steps - Manual
Demo Mode: Yes
Cosmetics features
Front/edge: Piano black
Dress plate: Chrome plated
Volume & operation knob or wheel: Chrome Plated
Preset key finish: Piano Black
Escutcheon finish: Piano Black
Triangle Illumination: Red
Volume & operation knob illumination: Variable
Front terminals illumination: Variable
Key illumination: White
Variable color illumination: Yes

Tuner Features
Radio Data System: Yes
Radio Text: Yes
Program Type Function (PTY): Yes
Enhanced Other Networks Function (EON): Yes
PACS - clean reception tuner: Yes
Traffic Information: Yes
FM Reception: Yes
AM (MW/LW) Reception: Yes
Presets: 24 Presets (18FM / 3LW / 3MW)
Station Select: List
Tuner preset/recall key: Yes
Automatic Memory Entry (AME): Yes
Up/Down Seek Tuning: Yes
Tuning mode (Auto1 / Auto2 / Manual): Yes
FM Stereo / Mono Selector: Yes

CD Features
CD-R/RW Compatible: Yes
MP3, WMA & AAC playback: Yes
Compatible with Kenwood Music Editor Lite: Yes
Supreme: Yes
D.A.C. processing: 24 bit
0 bit Mute: Yes
Random Function (Track/Disc): Yes
Repeat Function (Track/Disc): Yes
Scan Function (Track/Disc): Yes

USB Features
USB terminal: Yes, Front
USB Type: USB1.1 / USB 2.0
Kenwood Music Editor Lite: Yes
Kenwood music control App for Android: Yes
MP3, WMA & AAC playback: Yes
Direct search: Yes
Category search: Yes
Related search: Yes
Resume play: Yes
Time code display: Yes

SD-card Features
SD card type: Yes, SD, SDHC
With adapter: mini SD & mini SDHC
Max capacity: 32 Gb
MP3, WMA & AAC playback: Yes

iPod Features
Made for iPod & iPhone *: Yes
USB Digital connection (1 wire): with optiona cable KCA-iP102
Music library search: Yes
Alphabet search: Yes
Skip search: Yes
App & iPod control mode: Yes
Reverse browsing: Yes
Works with iPod Classic *: 80G, 120G & 160G
Works with iPod Video *: 5th/6th generation
Works with iPod Touch *: 1st/2nd generation
Works with iPod Nano *: 1st/2nd/3rd/4th/5th Gen
Works with iPhone *: Yes
Battery charge + power control: Yes
1A current capability: Yes
* Always update to latest Apple firmware

Audio Features
Maximum Output Power: 50W x 4
MOSFET Power IC: Yes
Auxiliary input: Front Mini-jack
Pre-out: 3 RCA
Pre-out Output Level: 2.5V
Subwoofer Reference Level Adj.: Yes
Source Tone Control & Memory: Bass / Mid / Treble
Balance/Fader/Loudness Control: Yes
Balance/Fader Control: Yes
Att.(-20dB) with smooth Volume Return: Yes
Preset EQ: Yes
Bass Boost Circuit: Yes

Bluetooth General Features
Parrot Module built-in: Yes, FC6000
Hands free Profile (HPF): Yes
Advanced Audio Distribution Profile (A2DP): Yes
Serial Port Profile (SPP): Yes
Headset Profile (HSP): Yes
Phonebook Access Profile (PBAP): Yes
Phone numbers hold:: up to 600 per registered phone.
Number of Phonebooks: 5 Devices x 600 Names x 10 Categories
Voice recognition dialing: Yes, from Phone
Object Push Profile (OPP): Yes
Audio/Video Remote Control Profile (AVRCP): Yes
Auto reply (SMS) message sending function: Yes
2Way bluetooth key: Yes
Easy pairing function: Yes
Easy pairing A2DP device: Yes, 2 devices
Phone device status display: Yes
Audio device status display: Yes
Signal strength display: Yes
Remaining battery display: Yes
Bluetooth phones to register: 5
Compatibility check mode: Yes
High-quality noise canceling microphone: Yes
Bluetooth firmware upgradeable: Yes, USB
* depends on phone model/make

USB interface: Yes
OEM Wired Remote Control: Yes
Power Control (P.CON) wire: Yes
2-way (Tel/Navi) mute wire: Yes
External microphone input: Yes

Tuner Specifications
FM Frequency range (50kHz step): 87.5MHz ~ 108MHz
FM Usable Sensitivity: 1μV/75ohm (S/N 26dB)
FM Quieting Sensitivity: 2.5μV/75ohm (S/N 46dB)
FM Frequency Response: 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono): 63dB
FM Stereo Separation (1kHz): 40dB
MW Frequency Range: 531kHz ~ 1611kHz
MW Frequency step: 9kHz
MW Usable Sensitivity: 36μV (S/N 20dB)
LW Frequency Range: 153kHz ~ 279kHz
LW Usable Sensitivity: 57μV (S/N 20dB)

CD Specifications
Laser Diode: GaAlAs
Digital Filter(D/A): 8 Times Over Sampling
Digital/Analogue Converter: 24 Bit
Spindle Speed: 500 ~ 200rpm (CLV: 1 times)
Wow & Flutter: below measurable limit
Frequency Response: 10Hz ~ 20kHz (±1dB)
Total Harmonic Distortion: 0.008% (1kHz)
Signal to Noise Ratio: 110dB (1kHz)
Dynamic Range: 93dB
MP3 Decoder: Compliant with MPEG-1/2 Audio Layer
WMA Decoder: Compliant with Windows Media Audio
AAC Decoder: AAC-LC".m4a" Files

USB Specifications
USB Version compatibility: 1.1 / 2.0
File System: FAT 16/32
Maximum Supply current: 1000mA
D/A Converter: 24 bit
MP3 Decode: Compliant with MPEG-1/2 Audio Layer-3
WMA Decode: Compliant with Windows Media Audio
AAC Decode: AAC-LC "m4a" Files

SD-card specs
Compatible physical format: Version 2.0
Compatible SD cards: SD, SDHC
With adapter: mini SD & mini SDHC
File system: FAT 16/32
Maximum capacity: 32 GB
Audio decoder: MP3, WMA & AAC

Audio Specifications
Maximum Power: 50W x 4
Output Power (DIN45324,+B=14.4v): 30W x 4
Preout Level: 2500mV / 10kOhm,
Preout Impedance: ≤ 600Ohm
Speaker Impedance: 4Ohm ~ 8Ohm
AUX Frequency Response: 20Hz ~ 20kHz (±1dB)
AUX Maximum Input Voltage: 1200mV
AUX Input Impedance: 10kOhm
Bass Tone Control: 100Hz ±8dB
Middle Tone Control: 1kHz ±8dB
Treble Tone Control: 12.5kHz ±8dB

Bluetooth specifications
Technology: bluetooth 3.0 certified
Frequency: 2.402 - 2.48 GHz
Output power: +4dBm(max), 0dBm (AVE) power class 2
Maximum range: Line of sight approx. 10 meter
Handsfree profile (HFP): Yes
Serial port profile (SPP): Yes
Headset profile (HSP): Yes
Advanced audio distribution profile (A2DP): Yes
Audio/Video remote control profile (AVRCP): Yes
Object push profile (OPP): Yes
Phonebook access profile (PBAP): Yes

General Specifications
Operating voltage: 114.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption: 10A
Dimensions (WxHxD): 182 x 53 x 160mm
Weight: 1300gr
