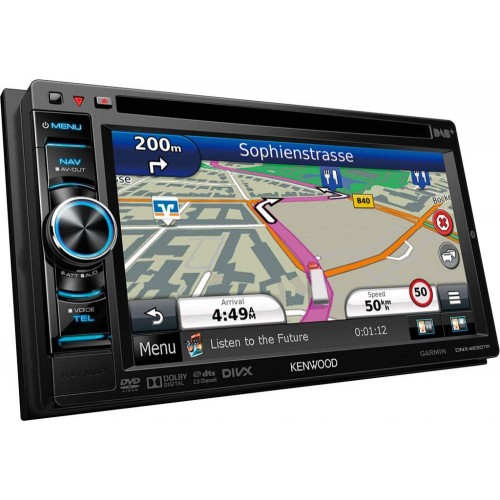

Kenwood DNX4230TR

6.1" WVGA, Truck & Camper navigačný systém

General Features
DIN Size: 2 DIN
Disabled System Indicator (DSI): Yes
Security Code Function ( user set): Yes, 4 digits
On Screen Display (OSD) Operation: Yes
Smooth GUI: Yes
Selectable GUI Background Wallpaper: Yes
Key Illumination: Variable color
Touch sensor: Yes
Installer Memory: Yes
Back-up Memory: Yes
Attenuator with Smooth Volume Return: Yes
Optional IR remote controller: Yes, (RCDV331)
Digital Clock (24H): Yes
ISO connector: Yes
Bluetooth unit built-in: Yes
Navigation unit built-in: Yes
Made for iPod: Yes
Firmware upgreadable: Yes

Multimedia GUI Features
Variable Colour illumination: Yes
Menu text in selectable language: English UK (Default), Spanish, French, German, Italian, Dutch, Russian, Portuguese, Chinese (Simplified/traditional), Thai, Turkish, Arabic, Persian, Hebrew, Greek, Malaysian, Indonesian, Polish, Czech, Hungarian
Graphics Type: Graphics
Colour Pallet: 256
Base Colour Class: 65000
Background Customize: Yes
Picture in picture: Yes
Software updates (SoC): (USB)
Slide Touch Operation: Yes
Animation: Yes, 2D
Scroll Display: Yes

Monitor Features
Screen Type: 6.1" Wide VGA
LCD backlight: LED
Display Mode: 4 Mode (Full/Just/Zoom/Normal)
High Resolution VGA Display: Yes
Screen Adjustments: Brigtness/Tint/Colour/Contrast/Black Level/Sharpness/Dimmer
Dimmer function: Manual/Sync/Navi Sync
Visual Source Mode: DVD/Video/USB/iPod/App
Touch Panel: Yes
NTSC/PAL judge: Yes (Auto)
V.OFF/TFT Off Mode: Yes

Audio features
Max. Output Power (MOSFET Power IC): 4 x 50W
Pre-out: 3RCA: Front/Rear/Subwoofer
Pre-out Output Level: 2V
Subwoofer Reference Level Adj.: Yes
Dual Zone Source & Volume Control: Yes
Balance/Fader Control: Yes
Loudness Control: Yes
Att.(-20dB) with smooth Volume Return: Yes
Built-in equalizer: Yes, 3 Band Parametric Equalizer
System E's+ (Built-in HPF & LPF): Yes
Beep On/Off: Yes

Video Features
Audio/Video Output: 1 RCA
Audio/Video Input: 1 RCA
iPod AV input switchable to additional AV input: Yes
Video-In for Rear-view Camera: 1 dedicated NTSC video input (RCA)
Detection Mode Rear View Camera: Reverse sensor wire
(Rear) camera display view control: Yes
DVD Menu Direct Touch Operation: Yes

Tuner Features
Radio Data System: Yes
Radio Text Plus: Yes
Program Type Function (PTY): Yes
Enhanced Other Networks Function (EON): Yes
Traffic Information: Yes
FM Reception: Yes
AM (MW/LW) Reception: Yes
Presets: 24 Presets (18FM / 3LW / 3MW)
Station Select: List
Tuner preset/recall key: Yes
Automatic Memory Entry (AME): Yes
Up/Down Seek Tuning: Yes
Tuning mode (Auto1 / Auto2 / Manual): Yes
FM Stereo / Mono Selector: Yes

CE DAB tuner features
DAB+ tuner built-in: Yes
Intelligent seek: Yes
Ensemble seek: Yes
Tuning mode / Seek mode: Auto1/Auto2/Manual
Service preset: 1 ch * 15 bank presets,
Auto service memory (AME): Yes
DAB-RDS integrated TI: Yes
DAB priority: Yes
DAB-DAB/DAB-FM auto switch: Yes
DLS (Dynamic Label): Yes
DCR (Dynamic Range Control): Yes
Antenna power supply on/off switch: Yes

DVD-Features
Disc Capacity: 1 Disc(s)
DVD±R/RW Compatible: Yes
DVD Region Code: 2
CD-R/RW Compatible: Yes
CD Text: Yes
MP3, WMA & AAC playback: Yes
DivX: Yes
CD-DA Repeat/Scan/Random play: Yes
Direct Search: Yes
Time Code Display: Yes
Resume Play: Yes
Disc Menu Direct Touch: Yes
Down mix: Yes

USB Features
USB terminal: Yes, High speed
Kenwood Music Editor Lite Compatible: Yes
MP3, WMA, AAC & WAV playback: Yes
MPEG1/2/4, WMV, JPEG, H.264: Yes
JPEG picture control: Yes
JPEG slide show: Yes
Repeat/Scan/Random search: Yes
Category search: Yes
Resume play: Yes
Time code display: Yes
1A current capability: Yes

iPod Features
Made for iPod & iPhone *: Yes
USB Digital connection (1 wire): with optiona cable KCA-iP102
USB Video & Audio direct control (2 wire): with optional KCA-iP202
Music playback: Yes
Video playback: Yes, not with iPhone 5
Album art support: Yes
Music library search: Yes
Alphabet search: Yes
Skip search: Yes
Related search: Yes
Control by hand: Yes
App & iPod control mode: Yes
Aha Radio Link: Yes
Voice Control using Siri.: Yes
2 Speed search: Yes
Reverse browsing: Yes
Works with iPod Classic *: 80G, 120G & 160G
Works with iPod Video *: 5th/6th generation
Works with iPod Touch *: 1st/2nd/3rd and 4th generation
Works with iPod Nano *: 1st/2nd/3rd/4th/5th/6th Gen
Works with iPhone *: Yes, 3G / 3GS / 4 / 4S / 5 (audio only)
Bluetooth Auto Paring for iPhone: Yes
Battery charge + power control: Yes
1A current capability: Yes
* Always update to latest Apple firmware

Bluetooth General Features
Module: Yes, Telechips
Hands free Profile (HPF): Yes
Advanced Audio Distribution Profile (A2DP): Yes
Serial Port Profile (SPP): Yes
Phonebook Access Profile (PBAP): Yes
Max number of registed phones: 5 phones
Phone numbers hold:: up to 600 per registed cell-phone.
Voice recognition dialing: Yes, By phone
Object Push Profile (OPP): Yes
Audio/Video Remote Control Profile (AVRCP): Yes
Easy pairing function: Yes
AhaRadio Link for Android: Yes
Easy pairing with iPhone: Yes
Works with iPhone Siri: Yes
Phone device status display: Yes
Signal strength display: Yes
Remaining battery display: Yes
High-quality noise canceling microphone: Yes
Bluetooth firmware upgradeable: Yes
* depends on phone model/make: & Kenwood unit

Navigation Features
Touch-screen controllable: Yes
Easy-to-use Graphical Interface: Yes
Built-in Map Data: City Navigator NT version 15E
Map Upgrade via: SD Card(KNA-MP**E) or USB(donwload)
Map Coverage: City Navigator NT versie 15E
Points of intrest (POI): Yes, truck related
Custom POI's: Yes
Auto Zoom Function: Yes
Turn-by-Turn Instructions: Yes
Automatic Re-Route: Yes
Day/Night Colour mode: Yes, Manual/Automatic
Route Preference Function: Yes
GPS Info page: Yes
Customizable vehicle profile information: Yes, truck related
Truck-related restrictions: Yes
Text-to-Speech (TTS) Voice Guidance: Yes
Text languages: 31 languages
Phone call by POI search: Yes
ecoRoute™: Yes
Traffic Trend / My Trend: Yes
Traffic Message Channel Built-in: Yes
Trip log output to PC via USB: Yes

Connectivity
DC-Cord: Molex to ISO
OEM Wired Remote Control: Yes
OEM Display Control: Yes
Parking sensor wire: Yes
Reverse sensor wire: Yes
Power Control (P.CON) wire: Yes
2-way (Tel/Navi) mute wire: Yes
Dimmer control wire: Yes
GPS Antenna Input: Yes
DAB antenna input: Yes
External microphone input: Yes

Monitor Specifications
Screen size (Diagonal): 6.95 Inches Wide
Screen Size (WxH): 156.6 x 81.6mm
Display system: Transparent TN LCD Panel
Drive system: TFT Active Matrix System
Number of Pixels: 1152000pixels (800(H) x 480(V) x RGB)
Effective pixels: 99.99%
Pixel arrangement: RGB Striped
Back lighting: LED (Light Emitting Diode)

Video Specifications
Color System of External Video Input: NTSC/PAL
External Video Input Level (RCA): 1 Vpp / 75 Ohm
External Audio Max. Input Level (RCA): 2 V / 25 kOhm
Video input level (RCA): 1 Vpp, 75 Ohms
Video Output Level (RCA): 1 Vpp / 75 Ohm
Audio Output Level (RCA): 1.2 Vpp / 10 kOhm

Tuner Specifications
FM range: 87.5Mhz - 108MHz (50Khz step): Yes
FM Usable Sensitivity: 0.9μV/75ohm (S/N 26dB)
FM Quieting Sensitivity: 2μV/75ohm (S/N 46dB)
FM Frequency Response: 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono): 65dB
FM Selectivity(DIN): over 80dB (±400kHz)
FM Stereo Separation (1kHz): 35dB
MW range: 531kHz - 1611kHz (9kHz step): Yes
MW Usable Sensitivity: 25μV
LW range: 153kHz - 279kHz (9kHz step): Yes
LW Usable Sensitivity: 45μV

DAB Tuner specifications
L Band - Frequency range: 1452.96MHz - 1490.624MHz
Band III - Frequency range: 174.928 MHz - 239.2MHz
Sensitivity: - 100dBm
Signal to noise ratio: 90dB

DVD Specifications
D/A Converter: 24 bit&
