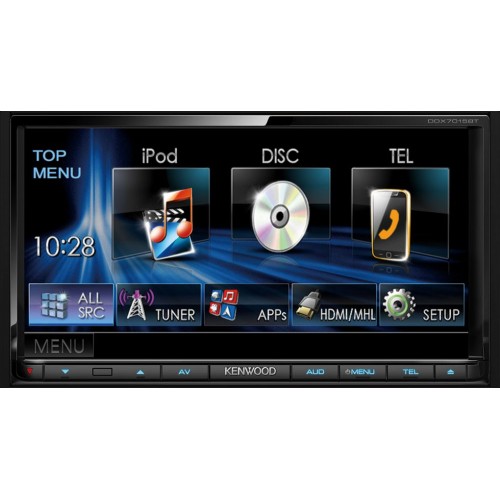

Kenwood DDX7015BT

Kenwood DDX7015BT
Výrobca: Kenwood
Kód produktu: Kenwood DDX7015BT
Dostupnosť: Skladom
Cena: 599,00€

7" bluetooth, mp3/wma/aac/wav/flac multimediálna jednotka s podporou iPhone a Android

General Features
DIN Size: 2 DIN
Disabled System Indicator (DSI): Yes
Security Code Function ( user set): Yes
On Screen Display (OSD) Operation: Yes
Smooth GUI: Yes
Selectable GUI Background Wallpaper: Yes
Key Illumination: Variable colour
Touch sensor: Yes
Installer Memory: Yes
Back-up Memory: Yes
Attenuator with Smooth Volume Return: Yes
Touch Sensor Tone: Yes
Optional IR remote controller: Yes, KNA-RCDV331
Digital Clock (24H): Yes
ISO connector: Yes
Bluetooth unit built-in: Yes
Firmware upgreadable: Yes

Multimedia GUI Features
OSDC Type: Full Graphics
Variable Colour illumination: Yes
Menu text in selectable language: English, Spanish, French, German, Italian, Dutch, Russian, Portuguese, Chinese, Greek, Korean, Thai, Turkish, Arabic, Persian, Hebrew, Greece, Indonesian, Polish, Czech, Hungarian
Graphics Type: Graphics
Base Colour Class: 65000
Demonstration Mode: Yes
Background Customize: Yes
Display customize: Yes
Top Menu Customize: Yes
Top Source Shortcut Key's: 3 Key's, customizable
Preset Wallpaper Type: Yes, x5
Wallpaper colour change: (x10)
Text Colour: (x10)
Software updates (SoC): by USB
Scroll Display: Yes
R-CAM interrupt: Yes
R-CAM Caution On Screen Display: Yes
Parking Assistance / Guide Lines: customizable

Monitor Features
Screen Type: 7,0" Wide VGA
LCD backlight: LED
Display Mode: 4 Mode (Full/Just/Zoom/Normal)
High Resolution VGA Display: Yes
Screen Adjustments: Brightness/Tint(NTSC only)/Colour/Contrast/Black Level/Sharpness
Dimmer Level: Auto/On/Off
Visual Source Mode: DVD/Video/USB/iPod/App
Touch Panel: Sheet/Lightweight
Mechanism type: Auto Slide
Mechanism Angle Adjustment: 7 steps
Mechanism Postion Memory: Yes
NTSC/PAL judge: Yes (Auto)
V.OFF/TFT Off Mode: Yes

Audio features
Max. Output Power: 4 x 50W
Max. Output Power (MOSFET Power IC): 4 x 50W
Pre-out: 3RCA: Front/Rear/Subwoofer
Pre-out Output Level: 4V
Subwoofer Reference Level Adj.: Yes
System E's+ (Built-in HPF & LPF): Yes
Source Tone Control & Memory: By Equalizer
Balance/Fader Control: Yes
Loudness Control: Yes
Att.(-20dB) with smooth Volume Return: Yes
Drive Equalizer / Drive EQ: Yes
System QEX (Preset & Manual Sound Control): Yes
Equalizer: Yes, 5 Band Graphic Equalizer
Beep On/Off: Yes

Multimedia DSP Features
DSP Chip: AK7600
Position Control: Yes
Position Preset: Yes
Position Cabin Size: Yes
G-EQ: 7 bands
G-EQ manual setting: Yes
G-EQ adjustable level: Yes, +9dB / -9dB
Time Alignment: 0cm ~ 610cm
High Pass Filter: yes
HPF Cut Off Frequency: 9
HPF Cut Slope Level: 4 steps
Low Pass Filter: Yes (Non-Fading)
LPF Cut Off Frequency: 6
LPF Cut Slope Level: 4 steps
Cross-over: Yes
Source DSP Memory: Yes
Speaker Size Control: Yes
Channel Level Control: Yes
Bass Boost: Yes

Video Features
Audio Video Output: Yes, Video: RCA - Audio: Mini-jack
Audio/Video Input: Yes, 2 x Mini-jack
iPod AV input switchable to additional AV input: Yes
Video-In for Rear-view Camera: 1 dedicated NTSC video input (RCA)
Detection Mode Rear View Camera: Reverse sensor wire
Advanced navigation terminal: Yes

Tuner Features
Radio Data System: Yes
Radio Text Plus: Yes
Helios: digital tuner technology: Yes
Traffic Information: Yes
FM Reception: Yes
AM (MW/LW) Reception: Yes
AF Regional: Selectable: AF/AF Reg/OFF
Local search: Yes
Auto TP search: Yes
Presets: 24 Presets (18FM / 3LW / 3MW)
Station Select: List
Automatic Memory Entry (AME): Yes
Up/Down Seek Tuning: Yes
Tuning mode (Auto1 / Auto2 / Manual): Yes
FM Stereo / Mono Selector: Yes
Program Type Function (PTY): Yes
PTY News: Off/0/10/20/.../80/90min
Enhanced Other Networks Function (EON): Yes

Disc Capacity: 1 Disc(s)
DVD±R/RW Compatible: Yes
DVD Region Code: 2
VCD Compatible: Yes
CD-R/RW Compatible: Yes
CD Text: Yes
MP3, WMA & AAC playback: Yes
Digital/Analog Converter: 24 bit
Shock Proof: Yes
MPEG1/2 Video File (.mpg) Compatible: Yes
DivX: Yes
Dolby Digital: 2Ch Downmix
MPEG Audio: 2Ch Downmix
CD-DA Repeat/Scan/Random play: Yes
Direct Search: Yes
Time Code Display: Yes
Resume Play: Yes
Zoom Control (DVD/VCD): Yes
On screen display (OSD): Yes
Down mix: Yes, 2ch for Dolby Digital & MPEG Audio

USB Features
Rear USB Terminal: Yes
USB Type: 2.0 Full speed
Kenwood Music Editor Lite Compatible: Yes
Kenwood Music Control App for Android: Yes
Android Media Transfer Protocol (MTP): Yes
MP3, WMA, AAC, WAV, FLAC playback: Yes
MKV: Matroska Multimedia Container: Yes
MPEG1/2/4, WMV, JPEG, H.264: Yes
Zoom control (movie/photo): Yes
Repeat / Random Play: Yes
Category search: Yes
Time code display: Yes
1A current capability: Yes

iPod Features
Made for iPod & iPhone *: Yes
USB Direct Control: with optional cable KCA-iP102
USB Direct Control (Audio, 1 wire, Lightning-connector): with optional cable KCA-iP103
USB Direct Control (Audio & Video, 2 wire, 30-pin connector): with optional KCA-iP202
Video playback: Yes, Only for iPod/iPhone models with 30Pin connector
Album art support: Yes
Podcast playback: Yes
Music library search: Yes
Alphabet search: Yes
Control by hand: Yes
App & iPod control mode: Yes
Aupeo! App Link: Yes
Spotify App Link: Yes
iPod Accessory Protocol (iAP): over Bluetooth
iTunes Radio App: yes iAP1
Reverse browsing: Yes
Voice Control using Siri.: Yes
Works with iPod Classic *: 80G, 120G & 160G
Works with iPod Video *: 5th/6th generation
Works with iPod Touch *: 2nd/3rd/4th & 5th*** generation
Works with iPod Nano *: 3rd/4th/5th/6th/7th*** generation
Works with iPhone *: 3G/3GS/4/4S/5***/5S***/5C***/6***/6plus***
Bluetooth Auto Paring for iPhone: Yes
Battery charge + power control: Yes
1A current capability: Yes
* Always update to latest Apple firmware
*** In case of Apple Unit with Lightning Connector only Audio playback: Yes

Android Phone Control
Connection Port: 1x HDMI
HDMI / MHL Interface: MHL (KCA-MH100)
App Control (With Touch Control): BT HID
Aupeo! Link for Android: Yes
Spotify Link for Android: Yes

Bluetooth General Features
Module: Yes, LG Innotek
Hands Free Profile (HPF): V1.5
Advanced Audio Distribution Profile (A2DP): Yes
High Quality Audio Streaming: AAC
Serial Port Profile (SPP): Yes
Phonebook Access Profile (PBAP): Yes
Generic Access Profile (GAP): Yes
Service Discovery Profile (SDP): Yes
Object Push Profile (OPP): Yes
Audio/Video Remote Control Profile (AVRCP): Yes
Multi Profile Support: Yes
Easy pairing function: Yes
iPhone automatic pairing via USB: Yes
Aupeo! App Link: Yes
Works with iPhone Siri: Yes
2 Phones Switchable Hands Free: Yes
Catchphone / Call Waiting: Yes
Alphabet Search (Phonebook): Yes
Echo Canceller: Yes
Signal strength display: Yes
Remaining battery display: Yes
High-quality noise canceling microphone: Yes
Bluetooth firmware upgradeable: Yes, via USB
* depends on phone model/make & Kenwood unit

USB interface: Yes
OEM Wired Remote Control: Yes
Display input/output control: Yes
DC-Cord: Molex to ISO
Parking sensor wire: Yes
Reverse sensor wire: Yes
Power Control (P.CON) wire: Yes
2-way (Tel/Navi) mute wire: Yes
Dimmer control wire: Yes
AV-Input (Switchable iPod / AV2-in): Yes
AV-Input (Non Switchable): Yes, Mini-jack
Rear View Camera Input: Yes
Amplifier pre-out: RCA: Front/Rear/Subwoofer
3rd Party TV Control (Mini-Jack): Yes
HDMI & MHL comport: Yes
Advanced navigation RGB terminal: Yes
FM Antenna Input: Yes
External microphone input (mini-jack): Yes

Monitor Specifications
Screen size (Diagonal): 6.2 Inches Wide
Screen Size (WxH): 137.5 x 77.2mm
Display system: Transparent TN LCD Panel
Drive system: TFT Active Matrix System
Number of Pixels: 1520000pixels (800(H) x 480(V) x RGB)
Effective pixels: 99.99%
Pixel arrangement: RGB Striped
Back lighting: LED (Light Emitting Diode)

Video Specifications
Color System of External Video Input: NTSC/PAL
External Video Input Level (RCA): 1 Vpp / 75 Ohm
