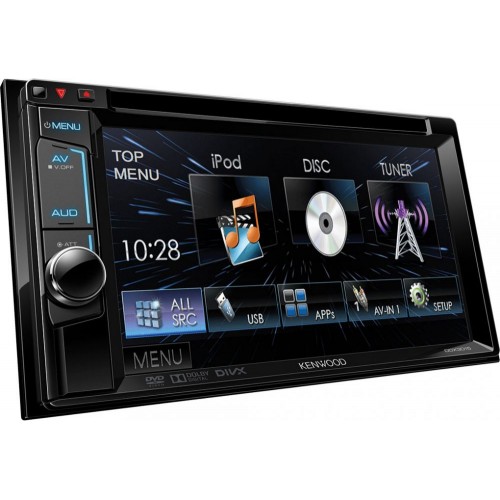

Kenwood DDX3015

Kenwood DDX3015
Výrobca: Kenwood
Kód produktu: Kenwood DDX3015
Dostupnosť: Skladom
Cena: 299,00€

6.2" multimediálna DVD, USB jednotka s českým menu. 3x RCA, 2xAV in, 1xAV out

General Features
DIN Size: 2 DIN
Disabled System Indicator (DSI): Yes
Security Code Function ( user set): Yes
On Screen Display (OSD) Operation: Yes
Smooth GUI: Yes
Selectable GUI Background Wallpaper: Yes
Key Illumination: Variable colour
Touch sensor: Yes
Installer Memory: Yes
Back-up Memory: Yes
Attenuator with Smooth Volume Return: Yes
Touch Sensor Tone: Yes
Optional IR remote controller: Yes, KNA-RCDV331
Digital Clock (24H): Yes
ISO connector: Yes
Firmware upgreadable: Yes

Multimedia GUI Features
OSDC Type: Full Graphics
Variable Colour illumination: Yes
Menu text in selectable language: English, Spanish, French, German, Italian, Dutch, Russian, Portuguese, Chinese, Greek, Korean, Thai, Turkish, Arabic, Persian, Hebrew, Greece, Indonesian, Polish, Czech, Hungarian
Graphics Type: Graphics
Colour Pallet: 256
Base Colour Class: 65000
Demonstration Mode: Yes
Background Customize: Yes
Display customize: Yes
Top Menu Customize: Yes
Preset Wallpaper Type: Yes
Wallpaper colour change: Yes
Software updates (SoC): by USB
Scroll Display: Yes
R-CAM interrupt: Yes
R-CAM Caution On Screen Display: Yes

Monitor Features
Screen Type: 6.2" Wide VGA
LCD backlight: LED
Display Mode: 4 Mode (Full/Just/Zoom/Normal)
High Resolution VGA Display: Yes
Screen Adjustments: Brightness/Tint(NTSC only)/Colour/Contrast/Black Level/Sharpness
Visual Source Mode: DVD/Video/USB/iPod/App
Touch Panel: Yes
NTSC/PAL judge: Yes (Auto)
V.OFF/TFT Off Mode: Yes

Audio features
Max. Output Power: 4 x 50W
Max. Output Power (MOSFET Power IC): 4 x 50W
Pre-out: 3RCA: Front/Rear/Subwoofer
Pre-out Output Level: 4V
Subwoofer Reference Level Adj.: Yes
Source Tone Control & Memory: By Equalizer
Balance/Fader Control: Yes
Loudness Control: Yes
Att.(-20dB) with smooth Volume Return: Yes
Drive EQ: Yes
System QEX (Preset & Manual Sound Control): Yes
Built-in equalizer: Yes, 5 Band Graphic Equalizer
System E's+ (Built-in HPF & LPF): Yes
Beep On/Off: Yes

Video Features
Audio Video Output: Yes, Video: RCA - Audio: Mini-jack
Audio/Video Input: Yes, 2 x Mini-jack
iPod AV input switchable to additional AV input: Yes
Video-In for Rear-view Camera: 1 dedicated NTSC video input (RCA)
Detection Mode Rear View Camera: Reverse sensor wire
Advanced navigation terminal: Yes

Tuner Features
Radio Data System: Yes
Radio Text Plus: Yes
Traffic Information: Yes
FM Reception: Yes
AM (MW/LW) Reception: Yes
AF Regional: Selectable: AF/AF Reg/OFF
Local search: Yes
Auto TP search: Yes
Presets: 24 Presets (18FM / 3LW / 3MW)
Station Select: List
Automatic Memory Entry (AME): Yes
Up/Down Seek Tuning: Yes
Tuning mode (Auto1 / Auto2 / Manual): Yes
FM Stereo / Mono Selector: Yes
Program Type Function (PTY): Yes
PTY News: Off/0/10/20/.../80/90min
Enhanced Other Networks Function (EON): Yes

Disc Capacity: 1 Disc(s)
DVD±R/RW Compatible: Yes
DVD Region Code: 2
VCD Compatible: Yes
CD-R/RW Compatible: Yes
CD Text: Yes
MP3, WMA & AAC playback: Yes
Digital/Analog Converter: 24 bit
Shock Proof: Yes
MPEG1/2 Video File (.mpg) Compatible: Yes
JPEG File (.jpg) Compatible: Yes
DivX: Yes
CD-DA Repeat/Scan/Random play: Yes
Direct Search: Yes
Time Code Display: Yes
Resume Play: Yes
Zoom Control (DVD/VCD): Yes
On screen display (OSD): Yes
Down mix: Yes, 2ch for Dolby Digital & MPEG Audio

USB Features
Rear USB Terminal: Yes
USB Type: 2.0 Full speed
Kenwood Music Editor Lite Compatible: Yes
Kenwood Music Control App for Android: Yes
Android Media Transfer Protocol (MTP): Yes
MP3, WMA, AAC & WAV playback: Yes
DivX Video Decoder: Yes
Zoom control (movie/photo): Yes
Repeat/Scan/Random search: Yes
Repeat / Random Play: Yes
Direct search: Yes
Category search: Yes

iPod Features
Made for iPod & iPhone *: Yes
USB Direct Control: with optional cable KCA-iP102
USB Direct Control (Audio, 1 wire, Lightning-connector): with optional cable KCA-iP103
USB Direct Control (Audio & Video, 2 wire, 30-pin connector): with optional KCA-iP202
Video playback: Yes, Only for iPod/iPhone models with 30Pin connector
Album art support: Yes
Podcast playback: Yes
Music library search: Yes
Control by hand: Yes
App & iPod control mode: Yes
Reverse browsing: Yes
Works with iPod Classic *: 80G, 120G & 160G
Works with iPod Video *: 5th/6th generation
Works with iPod Touch *: 2nd/3rd/4th & 5th*** generation
Works with iPod Nano *: 3rd/4th/5th/6th/7th*** generation
Works with iPhone *: 3G/3GS/4/4S/5***/5S***/5C***/6***/6plus***
Battery charge + power control: Yes
1A current capability: Yes
* Always update to latest Apple firmware
*** In case of Apple Unit with Lightning Connector only Audio playback: Yes

iPod Digital Connection (1 Wire): Yes, with Optional KAC-iP102 (30pins) or KCA-iP103 (lightning)
iPod Direct Control (2 wire): Yes, with optional KCA-iP202 (30pins)
USB interface: Yes
OEM Wired Remote Control: Yes
DC-Cord: Molex to ISO
Parking sensor wire: Yes
Reverse sensor wire: Yes
Power Control (P.CON) wire: Yes
2-way (Tel/Navi) mute wire: Yes
Dimmer control wire: Yes
AV-Input (Switchable iPod / AV2-in): Yes
Rear View Camera Input: Yes
Amplifier pre-out: RCA: Front/Rear/Subwoofer
Advanced navigation RGB terminal: Yes
FM Antenna Input: Yes

Monitor Specifications
Screen size (Diagonal): 6.2 Inches Wide
Screen Size (WxH): 137.5 x 77.2mm
Display system: Transparent TN LCD Panel
Drive system: TFT Active Matrix System
Number of Pixels: 11520000pixels (800(H) x 480(V) x RGB)
Effective pixels: 99.99%
Pixel arrangement: RGB Striped
Back lighting: LED (Light Emitting Diode)

Video Specifications
Color System of External Video Input: NTSC/PAL
External Video Input Level (RCA): 1 Vpp / 75 Ohm
External video input level (mini-jack): 1 Vpp / 75 Ohm
External Audio Max. Input Level (RCA): 2 V / 25 kOhm
Analog RGB Input: 0.7 Vpp / 75 Ohm
Video input level (RCA): 1 Vpp, 75 Ohms
Video Output Level (RCA): 1 Vpp / 75 Ohm

Audio Specifications
Maximum Power: 50W x 4
Output Power (DIN45324,+B=14.4v): 30W x 4
Preout Level: 4000mV / 10kOhm,
Speaker Impedance: 4Ohm ~ 8Ohm
Graphical Equalizer: 5-Band
G. EQ. Frequency (Hz): 80/200/800/4k/12,5k
G. EQ. Gain (dB): -8/-7/-6/.../-1/0/1/.../6/7/8
High Pass Filter Frequency (Hz): Through/62/100/120/150/180
Low Pass Filter Frequency (Hz): 55/85/120/160/Through
Subwoofer Level (dB): -50 dB to +10dB

Tuner Specifications
FM range: 87.5Mhz - 108MHz (50Khz step): Yes
FM Usable Sensitivity: 0.56μV/75ohm (S/N 26dB)
FM Quieting Sensitivity: 1.58μV/75ohm (S/N 46dB)
FM Frequency Response: 30Hz ~ 15kHz (± 3dB)
FM Signal to noise ratio (Mono): 68dB
FM Selectivity(DIN): over 80dB (±400kHz)
FM Stereo Separation (1kHz): 40dB
MW range: 531kHz - 1611kHz (9kHz step): Yes
MW Usable Sensitivity: 45μV
LW Usable Sensitivity: 28.5μV

DVD Specifications
D/A Converter: 24 bit
Video decoder: MPEG1/MPEG2/DivX
Audio decoder: Linear PCM/Dolby Digital/MP3/WMA/AAC/WAV
Wow & Flutter: Below Measurable Limit
Freq. Resp. (96kHz Sampling): 20Hz ~ 22kHz
Freq. Resp. (48kHz Sampling): 20Hz ~ 22kHz
Freq. Resp. (44,1kHz Sampling): 20Hz ~ 20kHz
Total Harmonic Distortion: 0.01% (1kHz)
Signal to Noise Ratio: 99dB (1kHz)
Dynamic Range: 99dB
Disc Format: DVD-Video/Video-CD/CD-DA
Sample Frequency: 44.1kHz/48kHz/96kHz
Quantifying bit number: 16/20/24bit

USB Specifications
USB Version compatibility: 2.0 Full Speed
File System: FAT 16/32
Maximum Supply current: 1000mA
D/A Converter: 24 bit
Video Decoder: MPEG1/MPEG2/DivX
Audio Decoder: MP3/WMA/AAC/WAV

Release keys: 2 pieces
Escutcheon: Yes
Installation Sleeve: Yes
DC cord (Molex to ISO): 25 cm

General Specifications
Operating voltage: 14.4V (10.5 ~ 16V Allowable)
Maximum Current Consumption: 10A
Dimensions (WxHxD): 182 x 111 x 160mm
Weight: 1700gr
Operation Temperature Range: -10°C ~ 60°C
Instruction Manuals: Multi-language quick Guide
