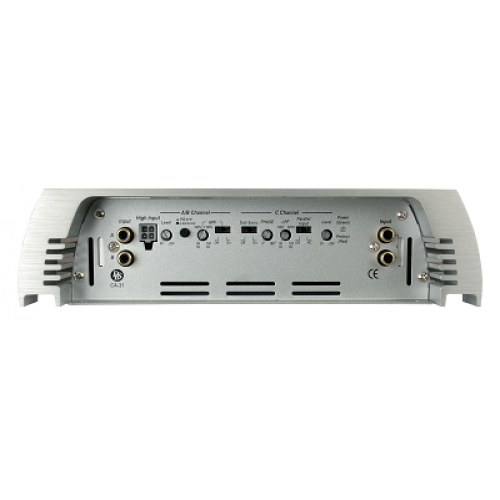

DLS CA31- 3 kanálový zosilňovač, 2x65W + 1x170W
Number of channels |
3 |
Amplifier class |
AB |
Output power in 4 ohm |
2 x 65 W |
Output power in 2 ohm |
2 x 90 W |
Mono sub channel 4 ohm |
170 W |
Mono bridge mode 4 ohm |
N/A |
Mono sub channel 2 ohm |
280 W |
Damping factor |
>100 |
S/N ratio, A-weighted |
>100 dB |
Frequency range |
10 Hz - 35 kHz |
Input sensitivity |
0,25 - 5 V |
Input impedance |
>10 kohm |
Input impedance, high level |
100 ohm |
Filters channel A & B |
HP: 50-150 Hz |
Filter sub channel |
Lowpass: 50 - 120 Hz + subsonic 25 Hz |
Low level output |
No |
High level input with auto start |
Yes |
Power consumption (idle) |
1A |
Power consumption (max) |
60A |
Rec. power cable |
Minimum 4AWG / 21 mm2 |
Fuses |
2 x 30 A |
Dimension (W x D x H) |
70 x 357 x 268 mm (2,92 x 14,06 x 10,55 inch) |
Weight |
4 kg ( 8,8 lb) |
